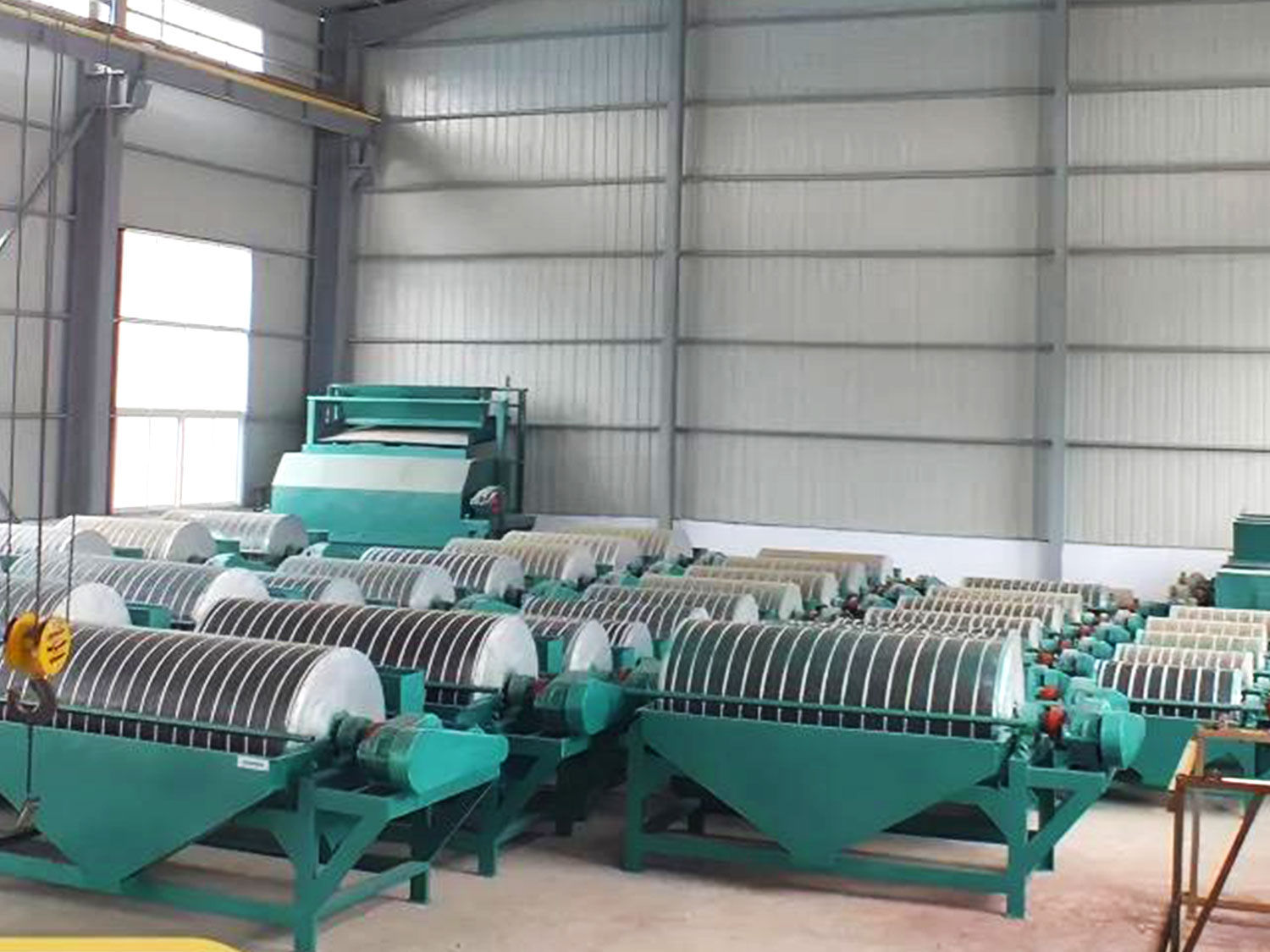

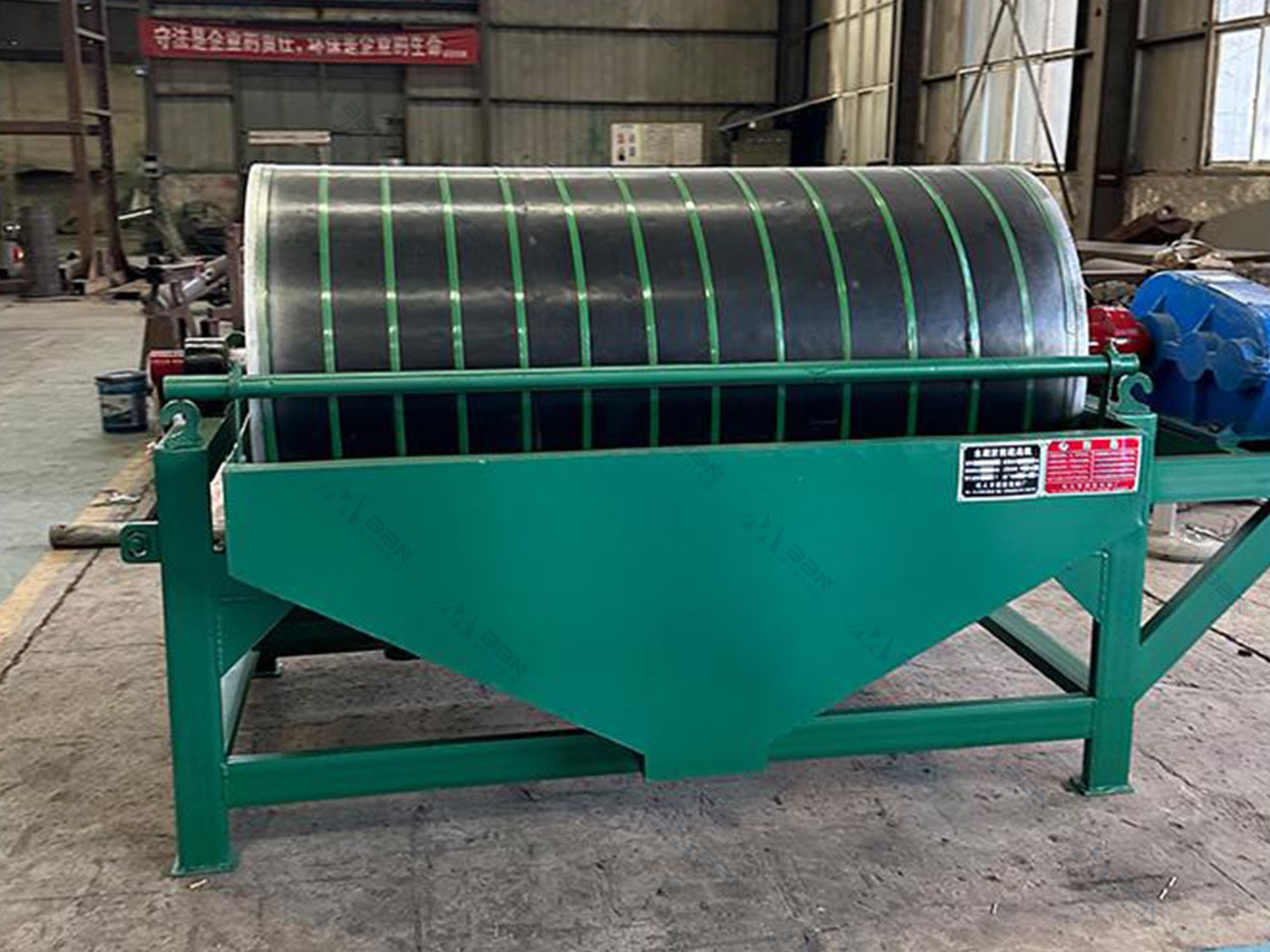

The product is suitable for phase separation of grinding process in ore dressing plant.
ADVANTAGES
Magnetic system is manufactured by materials with high remanence and high coercive force, which has the good ability to resist de magneti- zation, and the demagnetization shall not exceed 5% in eight years.
The magnetic isolation between magnetic system and spindle can ensure the magnetic field to the
shaft, and ensure the safe operation of the bearing.
It has row of silt institutions on both sides of the tub, which can facilitate cleaning sedimentation in the tub.
PARAMETER
| Model | Diameter (mm) | Length (mm) | Speed (r/min) | Capacity (t/h) | Capacity (m³/h) | Dimensions (L×W×H) (mm) | Power (kW) |
| CTB-712 | 750 | 1200 | 35 | 10-15 | 30-80 | 2330×1770×1280 | 3 |
| CTB-718 | 750 | 1800 | 35 | 20-35 | 50-120 | 2930×1770×1280 | 3.1 |
| CTB-918 | 900 | 1800 | 28 | 25-40 | 80-150 | 3095×1769×1465 | 4 |
| CTB-924 | 900 | 2400 | 28 | 40-55 | 120-190 | 3695×1769×1465 | 4 |
| CTB-1015 | 1050 | 1500 | 21 | 35-50 | 110-180 | 2815×1999×1565 | 5.5 |
| CTB-1018 | 1050 | 1800 | 21 | 45-60 | 130-200 | 3115×1999×1565 | 5.5 |
| CTB-1021 | 1050 | 2100 | 21 | 50-70 | 150-240 | 3415×1999×1565 | 5.5 |
| CTB-1024 | 1050 | 2400 | 21 | 60-80 | 160-280 | 3715×1999×1565 | 5.5 |
| CTB-1027 | 1050 | 2700 | 21 | 70-90 | 180-320 | 4015×1999×1565 | 7.5 |
| CTB-1030 | 1050 | 3000 | 21 | 80-120 | 240-400 | 4315×1999×1565 | 7.5 |
| CTB-1218 | 1200 | 1800 | 19 | 60-75 | 160-260 | 3150×2300×1940 | 5.5 |
| CTB-1224 | 1200 | 2400 | 19 | 80-110 | 240-380 | 3750×2300×1940 | 7.5 |
| CTB-1230 | 1200 | 3000 | 19 | 100-140 | 260-460 | 4350×2300×1940 | 11 |
| CTB-1236 | 1200 | 3600 | 19 | 120-160 | 300-550 | 5235×2300×1940 | 15 |
| CTB-1240 | 1200 | 4000 | 19 | 130-180 | 340-600 | 5635×2300×1940 | 15 |
| CTB-1245 | 1200 | 4500 | 19 | 140-190 | 380-660 | 6135×2300×1940 | 18.5 |
| CTB-1540 | 1500 | 4000 | 15 | 160-220 | 400-700 | 5960×2600×2420 | 22 |
| CTB-1545 | 1500 | 4500 | 15 | 180-250 | 450-800 | 6465×2600×2420 | 22 |
| CTB-1550 | 1500 | 5000 | 15 | 200-280 | 500-900 | 6965×2600×2420 | 30 |
