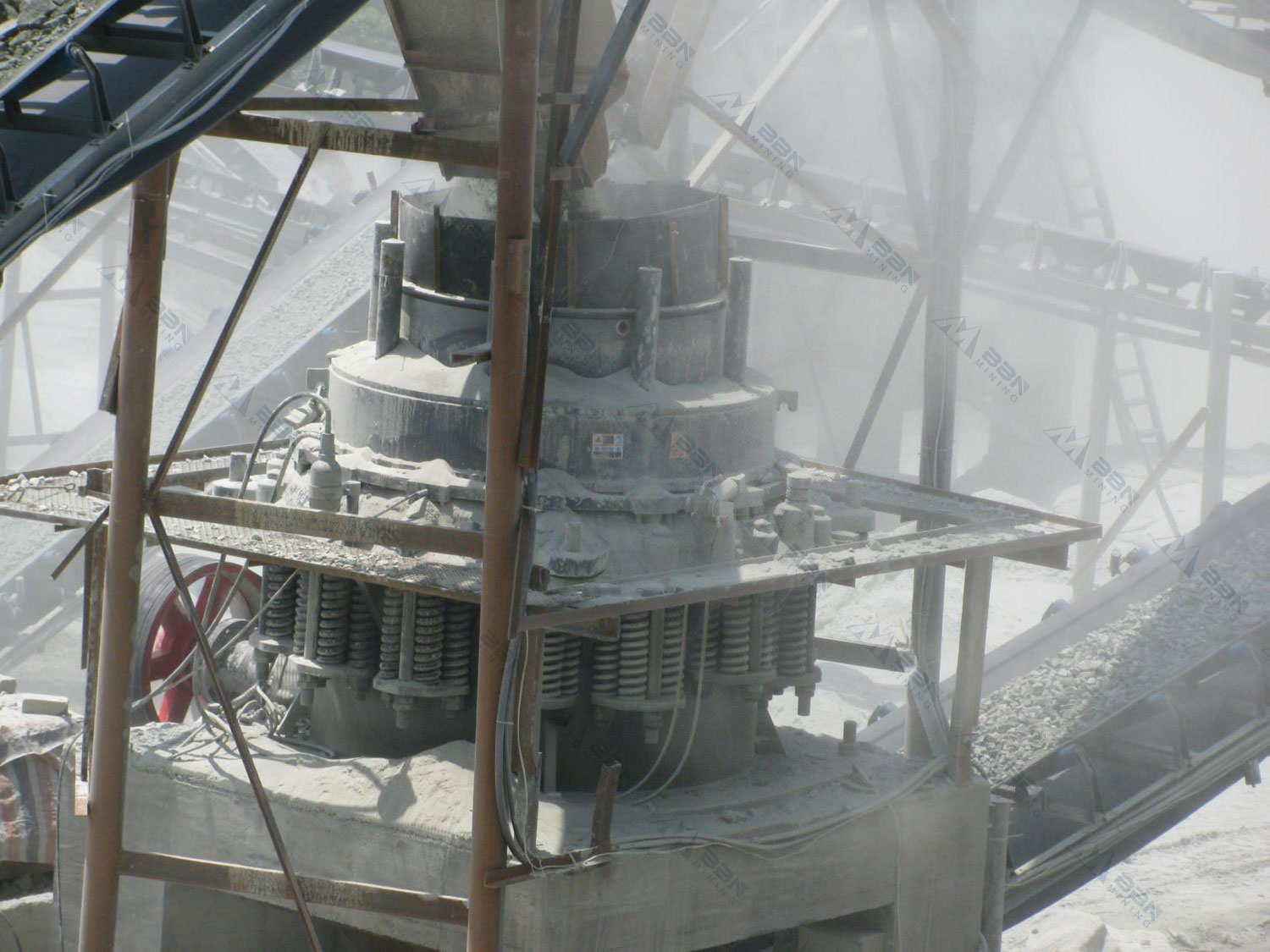

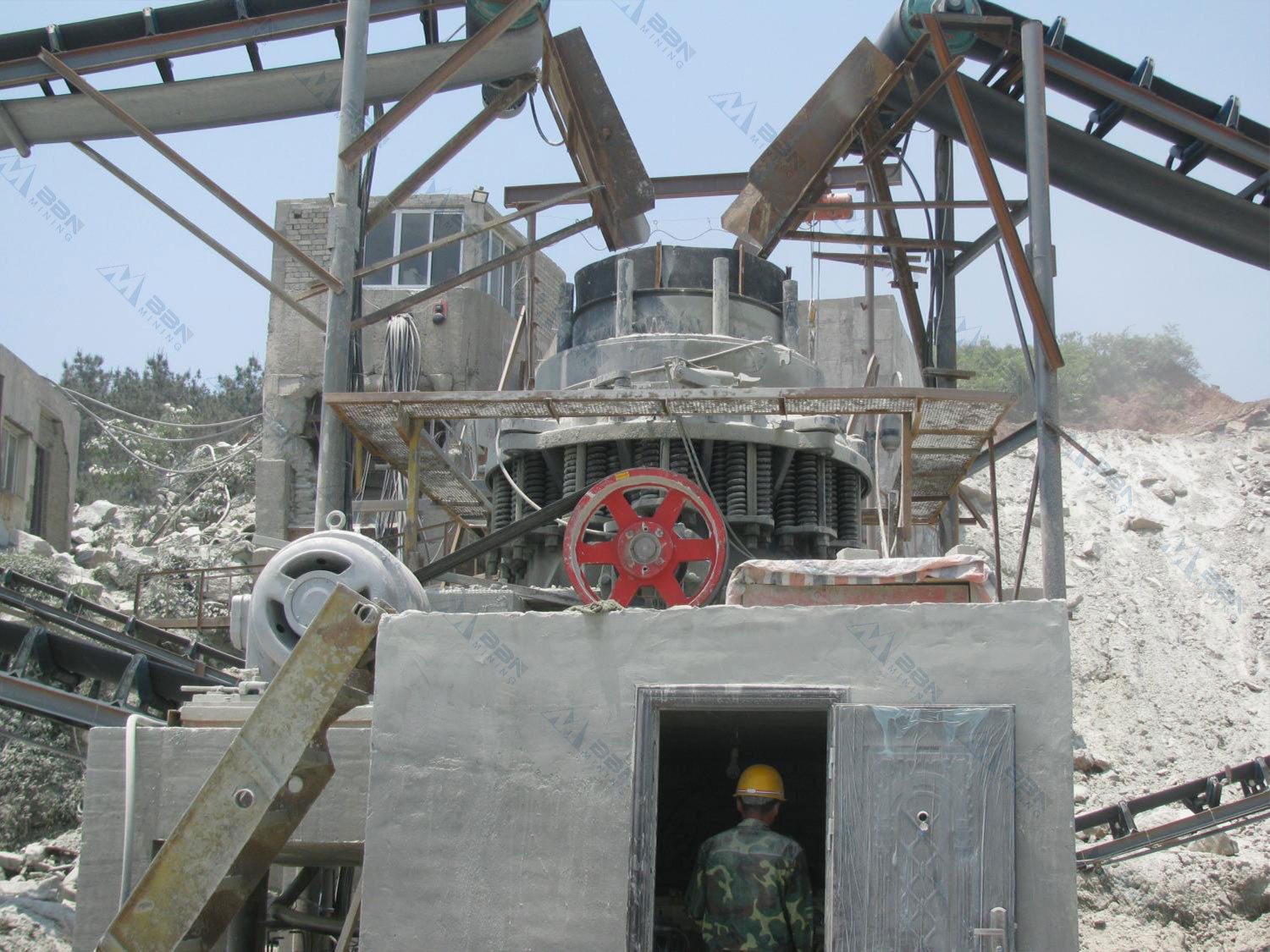

The spring cone crushers are manufactured based on the domestically most advanced spring cone crusher technology, and after years’ use and optimization, such crushers have shown stable performance, so they can be earliest and most widely used at home and abroad.

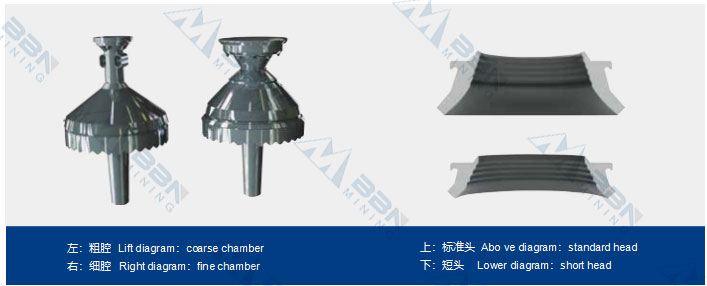

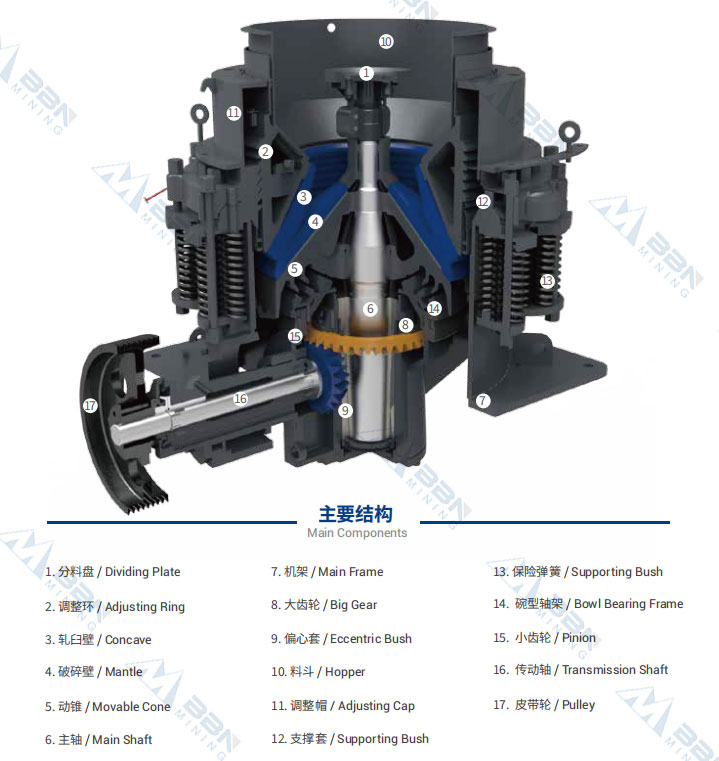

After optimization of the cavity type based on the technology of the traditional spring cone crushers, thespring cone crushers have further improved the relevant performance; the traditional reliable spring safety device is maintained and the adjustment device has been changed into a hydraulic one, which can ensure the equipment stability to the maximum extent and make the operation more convenient.
ADVANTAGES
PYB Standard Type
| Model | Diameter of Crushing Cone (mm) | Feed Opening (mm) |
Max. Feed Size (mm) |
Range of Discharge Opening (mm) | Capacity (t/h) |
Power (kW) |
Eccentric Shaft Speed (r/min) | Weight Including Motor (t) | Overall Size (L×W×H) (mm) |
| PYB600 | Φ600 | 75 | 65 | 12-15 | 40 | 30 | 356 | 5 | 2234×1370×1675 |
| PYB900 | Φ900 | 135 | 115 | 15-50 | 50-90 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYB1200 | Φ1200 | 170 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790×1878×2844 |
| PYB1750 | Φ1750 | 250 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 | 3910×2894×3809 |
| PYB2200 | Φ2200 | 350 | 300 | 30-60 | 590-1000 | 280/260 | 220 | 80 | 4622×3302×4470 |
| Model | Diameter of Crushing Cone (mm) | Feed Opening (mm) |
Max. Feed Size (mm) |
Range of Discharge Opening (mm) | Capacity (t/h) |
Power (kW) |
Eccentric Shaft Speed (r/min) | Weight Including Motor (t) | Overall Size (L×W×H) (mm) |
| PYD600 | Φ600 | 40 | 35 | 3-13 | 12-23 | 30 | 356 | 5.1 | 2234×1370×1675 |
| PYD900 | Φ900 | 50 | 40 | 3-13 | 15-50 | 55 | 333 | 11.3 | 2692×1640×2350 |
| PYD1200 | Φ1200 | 60 | 50 | 3-15 | 18-105 | 110 | 300 | 25.3 | 2790×1878×2844 |
| PYD1750 | Φ1750 | 100 | 85 | 5-15 | 75-230 | 160 | 245 | 50.2 | 3910×2894×3809 |
| PYD2200 | Φ2200 | 130 | 100 | 5-16 | 120-340 | 280/260 | 220 | 81.4 | 4622×3302×4470 |
